Complete arrow | SPHERE Slimline Pro - Carbon - Feathers - factory fletched - Spine: 900

Complete arrow | SPHERE Slimline Pro - Carbon - Feathers - factory fletched - Spine: 900

SKU: 212948-L0008
Category: Carbon Arrows
  • GTIN: 4064298232761
CHF 10.00
incl. 8,1% VAT , plus shipping costs
  • Available immediately
  • Delivery time: 4 - 7 Workdays  (CH - int. shipments may differ)
Piece
  • Available immediately
  • Delivery time: 4 - 7 Workdays  (CH - int. shipments may differ)
Configure
Konfiguration verwalten
Arrow Length Length from Point selection Glue in or enclosed Point? Nock Position Protector Ring
Konfiguration starten

Arrow Length

Arrow Length
Shorten Arrow | Length: 24.0 inches
Quantity: 1
Shorten Arrow | Length: 24,5 inches
Quantity: 1
Shorten Arrow | Length: 25.0 inches
Quantity: 1
Shorten Arrow | Length: 25,5 inches
Quantity: 1
Shorten Arrow | Length: 26.0 inches
Quantity: 1
Shorten Arrow | Length: 26,5 inches
Quantity: 1
Shorten Arrow | Length: 27.0 inches
Quantity: 1
Shorten Arrow | Length: 27,5 inches
Quantity: 1
Shorten Arrow | Length: 28.0 inches
Quantity: 1
Shorten Arrow | Length: 28,5 inches
Quantity: 1
Shorten Arrow | Length: 29.0 inches
Quantity: 1
Shorten Arrow | Length: 29,5 inches
Quantity: 1
Shorten Arrow | Length: 30.0 inches
Quantity: 1
Shorten Arrow | Length: 30,5 inches
Quantity: 1
Shorten Arrow | Length: 31.0 inches
Quantity: 1
Shorten Arrow | Length: 31,5 inches
Quantity: 1
Shorten Arrow | Length: 32.0 inches
Quantity: 1

Length from

The length of an arrow is always measured from the beginning of the shaft (without the point) to the nock bottom, i.e. the point of the nock at which the string lies.

- With the option "Length from shaft end", the actual arrow is therefore approx. 0.5" longer than selected,
  as the distance between the shaft end and the nock, the bottom must be added to the pure shaft length.
 The total length of the arrow is thus about 0.5" longer than the highest length selectable here.

- With the option "Length from Nock bottom" the actual arrow corresponds to the selected length, because here the pure shaft is shortened so much that the desired length is reached at the nock bottom.

Length from

With the option "Length from nock bottom", the actual arrow corresponds to the selected length,
as here the pure shaft is shortened until the desired length is reached at the nock base.

This is the standard method used in archery to measure the arrow length.

Quantity: 1

With the "Length from shaft end" option, the actual arrow is therefore approx. 0.5 inches longer than selected,
as the distance between the shaft end and nock base must be added to the pure shaft length.
must be added. The total length of the arrow is therefore approx. 0.5 inches longer than the maximum length that can be selected here.

Quantity: 1

Point selection

Point selection
PB - Spitzenauswahl - Klebe - 5/16
Quantity: 1
PB - Spitzenauswahl - Klebe - 5/16
Quantity: 1
PB - Spitzenauswahl - Klebe - 5/16
Quantity: 1
PB - Spitzenauswahl - Klebe - 5/16
Quantity: 1
PB - Spitzenauswahl - Klebe - 5/16
Quantity: 1
Quantity: 0
Quantity: 0
Quantity: 0
Quantity: 0
Quantity: 0
Quantity: 0
Quantity: 0

Glue in or enclosed Point?

If you want to glue in the point or the insert of the arrow, this is not a problem either. Simply select the option "Enclose the point only ". We add them only with the arrows and not stick them.
We only enclose them to the arrows and not glue them in.

Glue in or enclosed Point?

Point Selection for Wood Arrows

Quantity: 1

Point Selection for Wood Arrows

Quantity: 1

Nock Position

Nock Position
Quantity: 1

Point Selection for Wood Arrows

Quantity: 1

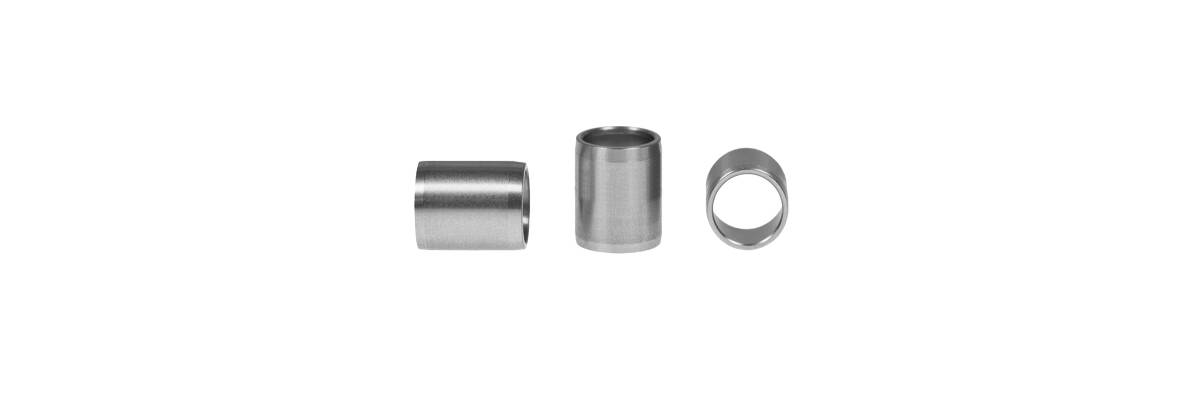

Protector Ring

The Protector Ring is a sleeve which is glued onto the shaft at the front and back and covers the shaft to approx. 1cm.
The ring prevents the carbon from breaking or splicing at its most sensitive points. It can be used with any insert and with any point or cam.

Protector Ring
Quantity: 1
Quantity: 1

Point Selection for Wood Arrows

Quantity: 1

Point Selection for Wood Arrows

Quantity: 1
Complete arrow | SPHERE Slimline Pro - Carbon - Feathers - factory fletched - Spine: 900
Delivery time: 4 - 7 Workdays
from
CHF 7.60 *
CHF 10.00
incl. 8,1% VAT , plus shipping costs

Description

Complete arrow | SPHERE Slimline Pro - Carbon

Slimline Pro - A name that is familiar to every shooter and yet stands for a completely new arrow from SPHERE! With a maximum outer diameter of 6.12mm and an inner diameter of 4.20mm, the shaft is particularly suitable for sporty shooters. Its patented structure with integrated, high-strength carbon fabric not only makes it light, but also particularly durable thanks to its optimized wall thickness. In view of its flight characteristics and impressive speeds, the SPHERE Slimline Pro is a real value-for-money tip!

Ready-made arrow, Factory fletched, Custom - Three SPHERE Slimline Pro arrows, three completely individual arrows

The SPHERE Slimline Pro comes fully assembled as a ready-made arrow, including tip, fletching and nock. All you have to do is select the desired Spine and whether you prefer vanes or natural feathers and you have the arrow you want.

With the SPHERE Slimline Pro - Factory fletched, you can customize your arrow. In addition to choosing the Spine and whether you prefer vanes or natural feathers, you can also specify the length and the tip to be used to get your desired arrow.

Custom means full choice! You can design your SPHERE Slimline Pro according to your wishes, no matter what length, tip, fletching, color or nock you want, (almost) everything is possible. An arrow as individual as its shooter.



Technical data:

Spine 400

  • Material: Carbon
  • Length
    • finished arrow: 32 inch
    • Factory fletched: selectable
    • Custom: selectable
  • Ø inside: 4,2mm / 0.165 inch
  • Ø outside: 6,12mm
  • Shaft weight (grain per inch): 9.56
  • Straightness: ±0.006 inch
  • Tip
    • Finished arrow: 85gr
    • Factory fletched: selectable
    • Custom: selectable
  • Fletching
    • Finished arrow: 3 inch vanes or 4 inch natural feathers in red/red/white
    • Factory fletched: 3 inch vanes or 4 inch natural feathers in red/red/white
    • Custom: selectable
  • Nock:
    • Finished arrow: SPHERE Pin Nock small, black
    • Factory fletched: SPHERE pin nock small, black
    • Custom: SPHERE pin nock small, black

Spine 500

  • Material: Carbon
  • length:
    • finished arrow: 32 inch
    • Factory fletched: selectable
    • Custom: selectable
  • Ø inside: 4,2mm / 0.165 inch
  • Ø outside: 5,86mm
  • Shaft weight (grain per inch): 8.08
  • Straightness: ±0.006 inch
  • Tip:
    • Finished arrow: 85gr
    • Factory fletched: selectable
    • Custom: selectable
  • Fletching:
    • Finished arrow: 3 inch vanes or 4 inch natural feathers in blue/blue/black
    • Factory fletched: 3 inch vanes or 4 inch natural feathers in blue/blue/black
    • Custom: selectable
  • Nock:
    • Finished arrow: SPHERE Pin Nock small, black
    • Factory fletched: SPHERE pin nock small, black
    • Custom: SPHERE pin nock small, black

Spine 600

  • Material: Carbon
  • length:
    • Finished arrow: 32 inch
    • Factory fletched: selectable
    • Custom: selectable
  • Ø inside: 4,2mm / 0.165 inch
  • Ø outside: 5,71mm
  • Shaft weight (grain per inch): 7,19
  • Straightness: ±0.006 inch
  • Tip:
    • Finished arrow: 85gr
    • Factory fletched: selectable
    • Custom: selectable
  • Fletching:
    • Finished arrow: 3 inch vanes or 4 inch natural feathers in green/green/white
    • Factory fletched: 3 inch vanes or 4 inch natural feathers in green/green/white
    • Custom: selectable
  • Nock:
    • Finished arrow: SPHERE Pin Nock small, black
    • Factory fletched: SPHERE pin nock small, black
    • Custom: SPHERE pin nock small, black

Spine 700

  • Material: Carbon
  • length:
    • Finished arrow: 32 inch
    • Factory fletched: selectable
    • Custom: selectable
  • Ø inside: 4,2mm / 0.165 inch
  • Ø outside: 5.62mm
  • Shaft weight (grain per inch): 6,70
  • Straightness: ±0.006 inch
  • Tip:
    • Finished arrow: 85gr
    • Factory fletched: selectable
    • Custom: selectable
  • Fletching:
    • Finished arrow: 3 inch vanes or 4 inch natural feathers in white/white/red
    • Factory fletched: 3 inch vanes or 4 inch natural feathers in white/white/red
    • Custom: selectable
  • Nock:
    • Finished arrow: SPHERE Pin Nock small, black
    • Factory fletched: SPHERE pin nock small, black
    • Custom: SPHERE pin nock small, black

Spine 800

  • Material: Carbon
  • length:
    • Finished arrow: 30 inch
    • Factory fletched: selectable
    • Custom: selectable
  • Ø inside: 4,2mm / 0.165 inch
  • Ø outside: 5.52mm
  • Shaft weight (grain per inch): 6,16
  • Straightness: ±0.006 inch
  • Tip:
    • Finished arrow: 85gr
    • Factory fletched: selectable
    • Custom: selectable
  • Fletching:
    • Finished arrow: 3 inch vanes or 4 inch natural feathers in red/red/black
    • Factory fletched: 3 inch vanes or 4 inch natural feathers in red/red/black
    • Custom: selectable
  • Nock:
    • Finished arrow: SPHERE pin nock small, black
    • Factory fletched: SPHERE pin nock small, black
    • Custom: SPHERE pin nock small, black

Spine 900

  • Material: Carbon
  • length:
    • Finished arrow: 30 inch
    • Factory fletched: selectable
    • Custom: selectable
  • Ø inside: 4,2mm / 0.165 inch
  • Ø outside: 5.27mm
  • Shaft weight (grain per inch): 5,08
  • Straightness: ±0.006 inch
  • Tip:
    • Finished arrow: 85gr
    • Factory fletched: selectable
    • Custom: selectable
  • Fletching:
    • Finished arrow: 3 inch vanes or 4 inch natural feathers in orange/orange/white
    • Factory fletched: 3 inch vanes or 4 inch natural feathers in orange/orange/white
    • Custom: selectable
  • Nock:
    • Finished arrow: SPHERE Pin Nock small, black
    • Factory fletched: SPHERE pin nock small, black
    • Custom: SPHERE pin nock small, black

Spine 1000

  • Material: Carbon
  • length:
    • Finished arrow: 28 inch
    • Factory fletched: selectable
    • Custom: selectable
  • Ø inside: 4,2mm / 0.165 inch
  • Ø outside: 5.35mm
  • Shaft weight (grain per inch): 5,22
  • Straightness: ±0.006 inch
  • Tip:
    • Finished arrow: 85gr
    • Factory fletched: selectable
    • Custom: selectable
  • Fletching:
    • Finished arrow: 3 inch vanes or 4 inch natural feathers in blue/blue/white
    • Factory fletched: 3 inch vanes or 4 inch natural feathers in blue/blue/white
    • Custom: selectable
  • Nock:
    • Finished arrow: SPHERE Pin Nock small, black
    • Factory fletched: SPHERE pin nock small, black
    • Custom: SPHERE pin nock small, black

Spine 1200

  • Material: Carbon
  • length:
    • Finished arrow: 28 inch
    • Factory fletched: selectable
    • Custom: selectable
  • Ø inside: 4,2mm / 0.165 inch
  • Ø outside: 5.24mm
  • Shaft weight (grain per inch): 4,75
  • Straightness: ±0.006 inch
  • Tip:
    • Finished arrow: 85gr
    • Factory fletched: selectable
    • Custom: selectable
  • Fletching:
    • Finished arrow: 3 inch vanes or 4 inch natural feathers in white/white/pink
    • Factory fletched: 3 inch vanes or 4 inch natural feathers in white/white/pink
    • Custom: selectable
  • Nock:
    • Finished arrow: SPHERE Pin Nock small, black
    • Factory fletched: SPHERE pin nock small, black
    • Custom: SPHERE pin nock small, black





Scope of delivery:
1x complete arrow







Characteristics

Spine: 10007006005004008001200
Inner diameter in inches: 0.165
max. length in inches: 28,000 - 28,99930,000 - 30,99932,000 - 32,999
Shipping weight: 0,03 kg
Item weight: 0,02 kg
Manufacturer's information:

Manufacturer's name:
BSW Handels GmbH
Address::
Demminer Strasse 32, 17389 Anklam
Country of origin::
Germany
Website:
https://www.bogensportwelt.de/
Contact:
https://www.bogensportwelt.de/Kontakt
Brand:
SPHERE

Shaft selector
